 Adhesion Tester

PosiTector Adhesion Tester:

The PosiTest Pull-Off Adhesion Tester measures the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure.
Measures adhesion of coatings to metal, wood, concrete and other rigid substrates .
Conforms to international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others
• Environmentally sealed enclosure – weatherproof, dustproof and shockproof - meets or exceeds IP65
• Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record
• Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
• 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
• Every PosiTest Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using a NIST traceable load cell

Available in 2 models... Manual or Automatic


PosiTector AT-A Automatic
• Electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. Greatly reduces user effort and the risk of influencing the pulling process
• Built-in rechargeable battery performs over 200 tests per charge. Continue testing with AC power while the battery recharges.

• Environmentally sealed enclosure – weatherproof, dustproof and shockproof - meets or exceeds IP65
• Rubberized, shock absorbing grips provide a stable, skid-resistant footing
• Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
• 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
• User selectable measurement units: psi (pounds per square inch), MPa (Megapascal), Nmm2 (Newtons per millimeter square) or Newton (force)
• Rotating display for horizontal and vertical use
• Every PosiTest Adhesion Tester pressure system is calibrated and certified to ± 1% accuracy using a NIST traceable load cell
• Conforms to international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others
• User adjustable pull rate, pull limit and hold time
• Record the results as pass/fail and the nature of fracture - cohesive, adhesive and glue failures
• Wirelessly connect to your smart device using our free app
• Recording the nature of the fracture
     Cohesive Failure
     Adhesive Failure
     Glue Failure
• Two models available with either 20 mm or 50 mm dollies


 Order Code

ATA20

ATA50

 Dolly size and stand off*

20 mm

50 mm

 Typical Applications

Coatings on metal

Coatings on concrete,
wood and plastic

 Range

0.7 – 24 MPa
100 – 3500 psi
100 – 7550 N

0.4 – 3.8 MPa
50 – 560 psi
100 – 7550 N

 Resolution

0.01 MPa (1 psi)

 Accuracy

±1% Full Scale

 Kits Include



ATA20: 20 mm dollies (20), 20 mm cutting tool and 20 mm stand off
ATA50: 50 mm dollies (8), 50 mm cutting tool and 50 mm stand off
Automatic Adhesion Tester, built-in rechargeable NiMH battery with charger, abrasive pad, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft Software, instruction booklet and video, Certificate of Calibration traceable to NIST, two-year warranty, and a sturdy, lightweight carrying case

*Optional 20 and 50 mm Accessory Kits allow each model to be used with alternative dolly sizes. Custom 10 and 14 mm dollies are available for special applications (compatible with 20 mm stand off).



PosiTest Manual
Features:
• Pull Rate Indicator allows operator to easily monitor and adjust the rate of pull in accordance with international test methods
• Easily select dolly sizes, change measurement units or store readings, with the touch of a button



• Conversion charts not required – tester automatically calculates pressure based on dolly size
• Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record
• Each kit comes with everything needed for testing .
• Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
• Hi-grade, industrial pressure sensor ensures continued accuracy
• Internal Memory stores maximum pull-off pressure, rate of pull, test duration and dolly size
• Optional PosiSoft® software available for downloading
• 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths

Two models available with either 20 mm or 50 mm dollies

 Order Code

ATM20

ATM50

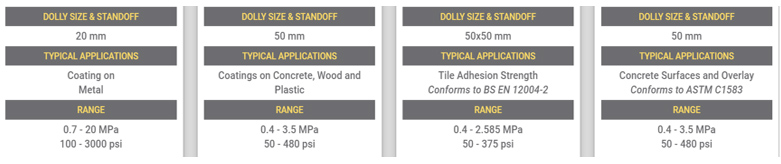

 Dolly size and stand off*

20 mm

50 mm

 Typical Applications

Coatings on metal

Coatings on concrete,
wood and plastic

 Range

0.7 – 20 MPa
100 – 3000 psi

0.4 – 3.5 MPa
50 – 500 psi

 Resolution

0.01 MPa (1 psi)

 Accuracy

±1% Full Scale

 Kits Include



ATM20: 20 mm dollies (20), 20 mm cutting tool and 20 mm stand off
ATM50: 50 mm dollies (8), 50 mm cutting tool and 50 mm stand off
Manual Adhesion Tester, built-in rechargeable NiMH battery with charger, abrasive pad, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft Software, instruction booklet and video, Certificate of Calibration traceable to NIST, two-year warranty, and sturdy, lightweight carrying case

*Optional 20 and 50 mm Accessory Kits allow each model to be used with alternative dolly sizes. Custom 10 and 14 mm dollies are available for special applications (compatible with 20 mm stand off).




TQC 2000 Cross Cut Tester

The TQC CC2000 Cross Cut Adhesion Test KIT is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates. The cutting knife of the TQC Cross Cut Adhesion Test CC2000 is easy to exchange without the use of extra tools. The self positioning knife bracket of the TQC Cross Cut Adhesion Test CC2000 ensures equal pressure on the cutting knife.

Standards : EN-ISO 2409, ASTM D3359
