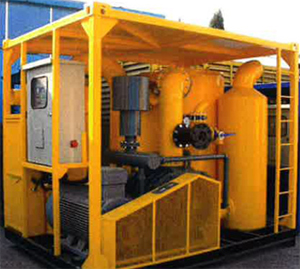

VACUUM RECOVERY SYSTEMS
The conventional method of recovering spent abrasive is both labor intensive and time consuming. The fastest and the most cost-effective method of cleaning up spent abrasive are by vacuuming. Through many years of experience in using, designing and building vacuum systems, CLEANBLAST has specially developed the vacuum-recovery system suitable for blasting operations. The system is engineered for minimum installation, easy operation, simple maintenance and increased productivity with superior overall performance.
CLEANBLAST vacuum recovery system provides 24-hours operation to recovering and conveying of blast medias, powders, plastic pellets, grains, sands, aggregates and other bulk materials in both clean-up and material transfer functions. Especially in inaccessible or enclosed areas such as storage tanks, box girder constructions, tank internals at shipyards etc, the equipment offers great savings in time and manpower. A CLEAN BLAST Vacuum system cut costs by reducing cleanup time and reclaiming valuable materials. These versatile vaccum systems can be used to pick up any materials that will flow through a hose with its long reach and powerful suction.

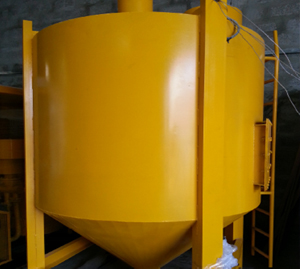

It allows silo to be emptied within a few minutes either manually or automatically. The silo can be fitted with a rotary-valve (optional) for continuous dumping operation.
Industrial Applications in
Shipyards
Fabrication companies
Tank cleaning companies
Metallurgical plants
Steel mills
Foundries
Power plants
Cement & chemical industries
Standard Safety Features of CLEANBLAST VACUUM MACHINE
- System automatically shut-off to prevent damage to vacuum producer when suction hose is choked-up with abrasive and electric motor’s current rises above a certain predetermined value.
- Silo and cyclone are equipped with full-tank sensor to shut-off the vacuum machine when it is full and prevent overloading of abrasive to dust-collector. At the same time, it can also be engineered to activate the warning light and alarm (optional).
- An emergency ‘STOP’ button, when depressed, will automatically cut-off all electrical supply.
Heavy Duty Range Specification
| Model No: |
CBVR-E8-90 |
CBVR-E10-110/132 |
Recovery Rate |
3.5 to 8.0 Ton/Hr |
5.0 to 12 Ton/Hr |
Max. Conveying Distance |
20m in Vertical ;
10m in Horizontal |
30m in Vertical ;
20m in Horizontal |
Supply / Power /
Class |
415V 3phase 50Hz/ 90KW
Class F insulation & IP54 Protection |
415V 3phase 50Hz/110 KW or 132KW Class F insulation & IP54 Protection |
Air Flow |
1470 cfm@ -450mm Hg |
2400 cfm@ -450mm Hg |
Filter Cleaning |
Periodic Reverse Jet Air Pulsing c/w Timer Card |
Periodic Reverse Jet Air Pulsing c/w Timer Card |
Dust Collector Filter |
High Efficiency Filter Cartridge |
High Efficiency Filter Cartridge |
Dimension (LxWxH) |
2800 x 2800 x 2250mm |
3000 x 2300 x 2560mm |
Silo Tank/Gross Weight (included) |
8 Ton Silo Tank / 3.5 Ton |
8 Ton Silo Tank / 4.5 Ton |
Standard Accessories |
5ʺ x 10m Vacuum Hose,
5ʺ x 10m, 4ʺ x 20m Suction Hose, 2ʺ x 20m Hose |
6ʺ x 10m Vacuum Hose,
6ʺ x 10m, 5ʺ x 20m 4ʺ x 20m Suction Hose, 2ʺ x 20m Hose |

Medium Duty Range Specification
|
CBVR 30 |
CBVR 37 |
CBVR 45 |
CBVR 55 |
CBVR 75 |
Recovery Rate (Ton/Hour) |
2.4 |
3 |
4.5 |
6 |
8 |
Electric Motor |
30 KW |
37 KW |
45 KW |
55 KW |
90 KW |
NG (rpm) |
3680 |
3680 |
3300 |
2965 |
3710 |
NM (rpm) |
2945 |
2945 |
2955 |
2965 |
2970 |
Q1 (m³/min) |
18.2 |
25.7 |
33.8 |
42.7 |
54.6 |
t² (°C) |
67 |
67 |
66 |
66 |
65 |
Max Noise Level |
80 |
85 |
85 |
85 |
90 |
Electrical Supply |
380 Volt – 50 / 60 Hz |
Start Stop |
With Star – Delta |
Note: The manufacturer reserves the right to make changes in technical and product specification without prior notice. |
