BLAST NOZZLES

For ensuring excellent durability for most demanding applications, CLEANBLAST™ Nozzles are engineered using the highest grade materials. Wide range of selection is available with choice of liners in various styles, lengths, bore sizes, thread types & entry diameters.

Venturi Bore Nozzles
CLEANBLAST™ Venturi Type Nozzles are designed to create a wide blast pattern & increase velocity by as much as 100% for a given pressure. They are recommended for increasing productivity when blasting larger surfaces.

Double Venture Nozzle
This is an updated version of Venture nozzle and it includes tow liners, one thread section & one exit. These two parts are fitted together and drilled holes are engineered onto the exit allowing atmospheric air into the downstream segment of the nozzle. With the additional benefit of a wider exit, the modifications increase the size of the blast pattern and minimize the loss of abrasive velocity.

Straight Bore Nozzle
These nozzles are designed to create a tight blast pattern for spot blasting or cabinet work. The general purpose is for smaller jobs .

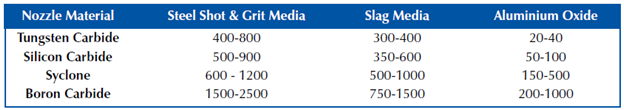

Nozzle Service Life in Hours

Values are estimated for comparison. Actual service life will vary depending on blast pressure, media size and particle shape.

TUNGSTEN CARBIDE VENTURI NOZZLE WITH ALUMINIUM JACKET
2" UNC THREADS

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B20195	CBTC 32 – 3/50	4.8mm	140mm	32mm
B20200	CBTC 32 – 4/50	6.35mm	140mm	32mm
B20210	CBTC 32 – 5/50	8.0mm	150mm	32mm
B20220	CBTC 32 – 6/50	9.5mm	175mm	32mm
B20230	CBTC 32 – 7/50	11.0mm	205mm	32mm
B20240	CBTC 32 – 8/50	12.5mm	235mm	32mm
B20150	CBTC – 4/50	6.35mm	140mm	25mm
B20160	CBTC – 5/50	8.0mm	150mm	25mm
B20170	CBTC – 6/50	9.5mm	175mm	25mm
B20180	CBTC – 7/50	11.0mm	205mm	25mm
B20190	CBTC – 8/50	12.5mm	235mm	25mm

TUNGSTEN CARBIDE VENTURI NOZZLE WITH ALUMINIUM JACKET & DURAGRIP SLEEVE
2" UNC THREADS

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B20495	CBTCD32– 3/50	4.8mm	140mm	32mm
B20500	CBTCD32– 4/50	6.35mm	140mm	32mm
B20510	CBTCD32– 5/50	8.0mm	150mm	32mm
B20520	CBTCD32– 6/50	9.5mm	175mm	32mm
B20530	CBTCD32– 7/50	11.0mm	205mm	32mm
B20540	CBTCD32– 8/50	12.5mm	235mm	32mm

TUNGSTEN CARBIDE STRAIGHT BORE NOZZLES
NPSM THREADS

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B20860	CBTCS – 3	4.8mm	45mm	13mm
B20870	CBTCS – 4	6.35mm	45mm	13mm
B20880	CBTCS – 5	8.0mm	45mm	13mm
B20890	CBTCS – 6	9.5mm	45mm	13mm

TUNGSTEN CARBIDE SPINNER BLAST NOZZLES WITH ALUMINIUM
JACKET

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B21070	CBTCSB – 13	6.35mm	55mm	13mm
B21080	CBTCSB – 14	8.0mm	55mm	13mm
B21090	CBTCSB – 15	8.0mm	55mm	13mm
B21100	CBTCSB – 16	9.5mm	55mm	13mm
B21110	CBTCSB – 17	9.5mm	55mm	13mm

TUNGSTEN CARBIDE HOLLOW BLAST NOZZLES WITH ALUMINIUM JACKET

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B21140	CBTCHB – 8	12.5mm	82mm	30mm
B21150	CBTCHB – 10	16.0mm	97mm	30mm

TUNGSTEN CARBIDE ‘STICK-UP’ NOZZLE WITH ALUMINIUM JACKET
1¼" (32mm) ID Blast Hoses

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B21995	CBTCSU – 5/32	8.0mm	115mm	24mm
B21181	CBTCSU – 6/32	9.5mm	115mm	24mm
B21196	CBTCSU – 7/32	11.0mm	115mm	24mm
B21197	CBTCSU – 8/32	12.5mm	115mm	24mm

1" (25mm) ID Blast Hoses

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B21191	CBTCSU – 4/25	6.35mm	110mm	20mm
B21192	CBTCSU – 5/25	8.0mm	110mm	20mm
B21193	CBTCSU – 6/25	9.5mm	110mm	20mm

TUNGSTEN CARBIDE 45º ANGLED NOZZLE WITH ALUMINIUM JACKET
2" UNC THREADS

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B20820	CBTCA 6 x 1/50	1 x 9.5mm	88mm	25mm
B20830	CBTCA 6 x 2/50	2 * 9.5mm	88cm	25mm
B20840	CBTCA 6 x 3/50	3 x 9.5mm	88mm	25mm

TUNGSTEN CARBIDE DOUBLE VENTURI NOZZLE
2” UNC THREADS

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B20221	CBTCDV25–6/50	9.5mm	180mm	25mm
B20231	CBTCDV25–7/50	11.0mm	215mm	25mm

NOZZLE AIR & COMPRESSURE PRESSURE REQUIREMENTS CHART

TUNGSTEN CARBIDE SHORT VENTURI NOZZLE WITH ALUMINIUM JACKET
2" UNC THREADS

Part No.	Art. Nr.	BORE SIZE	LENGTH	ENTRY DIAMETER
B20390	CBTC 32 – 4/50	6.35mm	85mm	32mm
B20400	CBTC 32 – 5/50	8.0mm	85mm	32mm
B20410	CBTC 32 – 6/50	9.5mm	85mm	32mm
B20420	CBTC 32 – 7/50	11.0mm	85mm	32mm
B20430	CBTC 32 – 8/50	12.5mm	85mm	32mm

B20439	CBTC – 4/50	6.35mm	85mm	25mm
B20440	CBTC – 5/50	8.0mm	85mm	25mm
B20450	CBTC – 6/50	9.5mm	85mm	25mm
B20460	CBTC – 7/50	11.0mm	85mm	25mm
B20470	CBTC – 8/50	12.5mm	85mm	25mm
